Lumileds Luxeon 5050 60W IP66 Outdoor LED Street Light 160LM/W

Lumileds Luxeon 5050 60W IP66 Outdoor LED Street Light 160LM/W

Luxeon 5050 60W 8100lm IP66 Outdoor LED Street Light 160LM/W

1. Specifications

2. Applications

Suitable for the highways, urban roads and secondary roads, stadiums, sidewalks,

residential areas, industrial areas, squares, parks,schools, villas,gardens and other places.

3. Features

• High quality power supply,input voltage 100-240V.The power efficiency is more than 88%, power factor>0.98, CE/ROHS/CB/ENEC certification.
• Adopting LUXEON 5050 LED light sources and LEYOND lens technology, 8% light efficiency higher than the same type lights in the market, with higher light transmittance up to 98%.
• Duct type thermal design, reduce the weight of the light and ensure good heat dissipation, lower luminous decay, and also extend life span of the leds. Adopting the popular CHEM modular design, effectively reduce the following maintenancecose.
• Low energy consumption, matching high efficiency constant-current driver, 60% energy saving; with good resistance to over-current, over-voltage, lightning, high temperature, which fully ensure long life span and high stability of the products.
• Durable lights with long life spn up to 100000hours; No need replace the lights frequently just make the regular maintenance.
• Green environmental protection, no UV light and infrared radiation, no mercury pollution.
• Nice appearance and non-fouling properties, Protection class IP66.
• Work without strobe, fast transient response; A wide range of working voltage.
• 5W chips are packaged in one LED, which ensure high stability and also reduce the death rate of the leds.

4. Operation and Storage Condition

• Operation Ambient Temperature -30 to +50°C, Relative Humidity 20~90%
• Input Voltage 90~305V AC, 50/60Hz
• Storage Ambient Temperature -30 to +60°C, Relative Humidity 5~95%
• Mounting Height : Suitable for 3~8m height

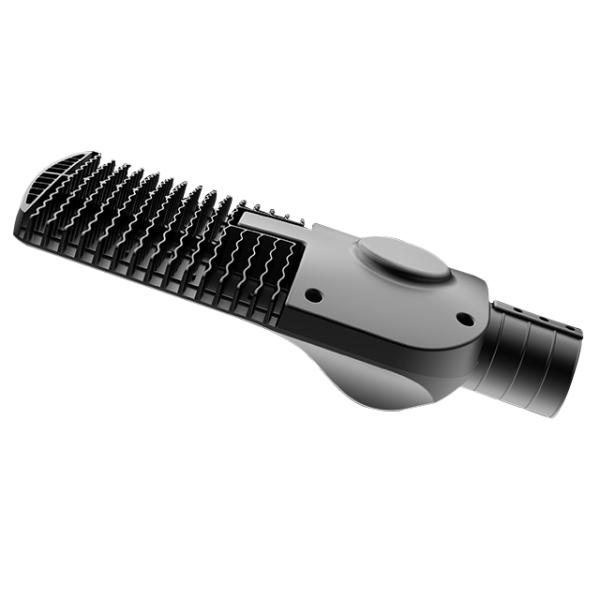

5. Pictures

6. Optional function

IP66 Outdoor LED Street Light

Luxeon 5050 LED Street Lights

Meanwell Outdoor Street Light

Lumileds Luxeon 5050 60W IP66 Outdoor LED Street Light 160LM/W Images
